amphibious
TON CLASS 20-24

AMPHIBIOUS EXCAVATOR E22

Big Float undercarriage creates a safe working platform for challenging terrains.

The excavator is able to perform work in hard-to-reach places, inaccessible to equipment of another class.

REmu Oy
SHOP

Surfboards

Chilli Board
Funboards

Chilli Rare Bird

$890
BUY
Emery Board
Funboards

Emery NEM XF

$900
BUY
Agency Grom Board
Funboards

Agency GROM

$750
BUY
01

What is Big Float Amphibious Excavator

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.

Восстановление озера Кекайярви с помощью Remu Big Float E22. Юливиеска, Финляндия.

Big Float E10 очистка ручьев путем удаления водной растительности

Big Float E15 Финляндия

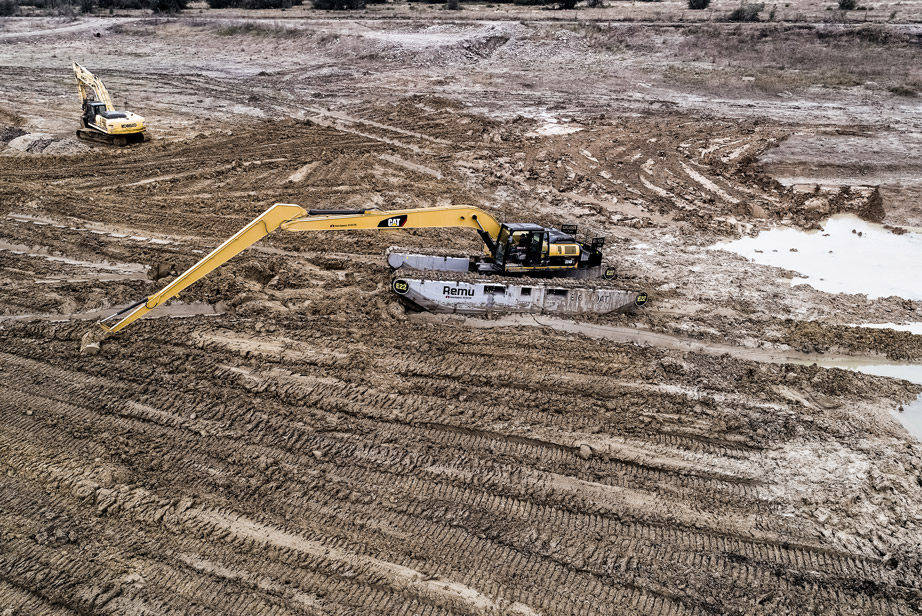

Big Float E22 Техас, США

Big Float E22 Австралия

The amphibious excavator is a unique special equipment designed to carry out excavation work in the most challenging conditions of swamps and open water.

Floating excavator can be used in digging dredging, suction dredging, clearing waterways, mining industry, landscaping, cutting aquatic vegetation, levee construction, restoration of wetlands, environmental remediation restoration and coastline protection.

Big Float pontoon undercarriage is manufactured in 3 sizes: Big Float E10, Big Float E15 and Big Float E22.

02

Pontoon undercarriage

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.

03

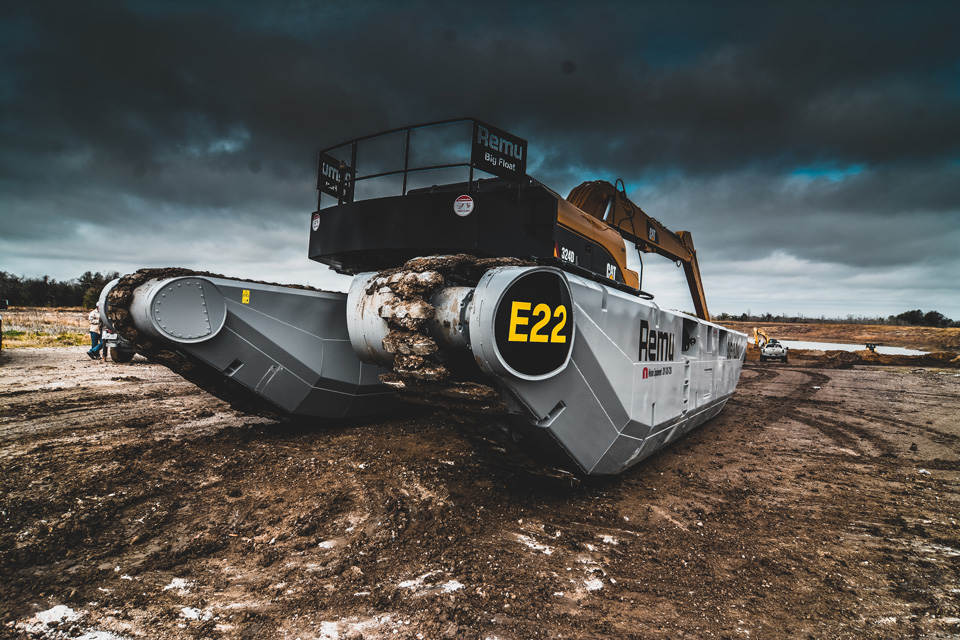

TRACK PADS

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.

STANDARTD TRACK PADS
The standard excavator chain parts are well available all over the world and the number of wearing parts in standard excavator chain system is far less compared to other chain systems.
Swamp track pads
The swamp track pads are used mostly in swamp area. For example, in saltwater areas in Australia. This tracks helps to push away from the ground much more stronger than standard.
04

transportation

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.

on a single truck
Hydraulically retracting and extending of undercarriage helps to skip wide-load escorts when transporting Remu Big Floats. The maximum transportation width of the Big Float is 3.5 m.
in a container
Big Float undercarriages can be packed in containers, which enables shipping all over the world.
05

proven structure

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.

Pontoons are available without any upper structure. You can choose any widely known excavator brand to mount: Caterpillar, Doosan, Hyundai, Liebherr, Hitachi and etc.

Bigfloat manufactured with yield strength steel - Hardox®400 and corrosion resistance. Crossbeams Widening beams of Big Float are specially designed for best possible strength.

Additional pontoons give extra buoyancy when working without bottom contact. Each side of the additional pontoon consists of 2 separate parts for an easier assembly. You can easily change the places of the parts crosswise.

Anchoring legs secure the Big Float to the bottom so that machine does not move while digging.

Each Big Float pontoon has a sealed planetary final drive powered by independent hydraulic motor.

The drive is securely placed in a watertight compartment, protected against any external physical impacts.

Remu Big Float uses 2 motors instead of 4 in order to prevent huge pressure on tracks and decrease the oil cost.

Hydraulically extendable and retractable pontoon undercarriage system.

Pontoons are available without any upper structure. You can choose any widely known excavator brand to mount: Caterpillar
Doosan
Hyundai
Liebherr
Hitachi and etc.

06

downloads

By better understanding the various aspects of surfing, By better understanding the various aspects of surfing, you will improve faster and have more fun in the water.
